1. Product Description

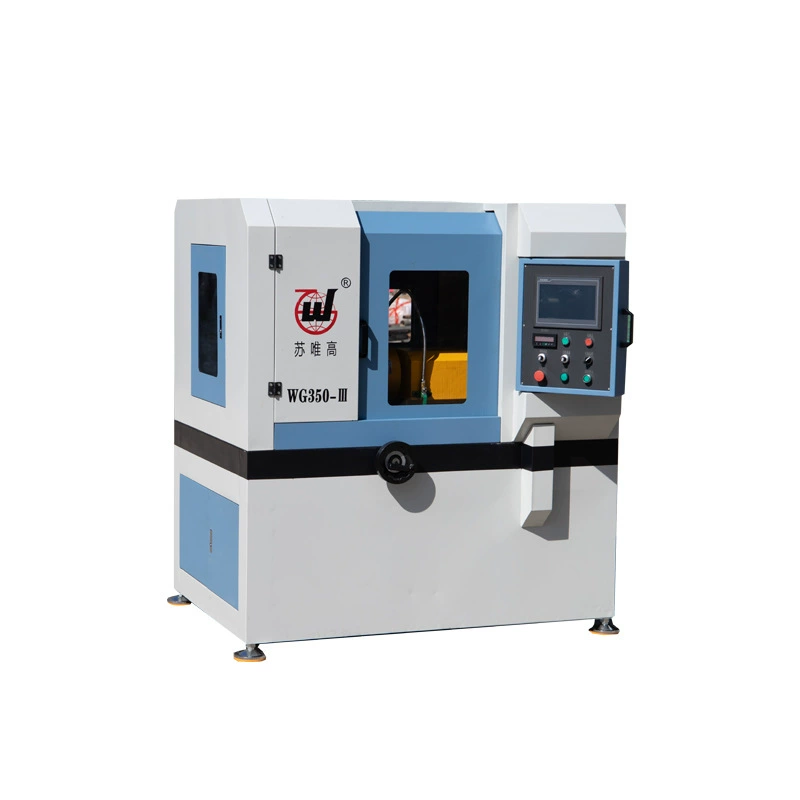

Welcome to the WG350-II automatic circular knife grinding machine manufactured by Nanjing Weigao. The grinding process is automatically controlled by a PLC system, with variable-frequency adjustable feed speed. The machine bed and components are made of cast iron with precision processing. Transmission parts adopt high-precision linear guideways and ball screws, ensuring grinding accuracy and long-term stability. The cutter head spindle box uses a high-precision spindle and NSK bearings (Japan). The fitting accuracy between the spindle and core shaft fixture is approximately 0.01 mm.
This machine can sharpen the cutting edges of various circular blades, including top knives, bottom knives, slitting knives, bed knives, and flat knives. It is widely used in papermaking, printing, textile, fiber, and other industries.
Customization is available according to customer requirements.
Special Note:Power supply: Three-phase five-wire system. Three-phase 380V + Neutral line (N) + Protective Earth (PE)
2. Circular Knife Grinding Cases
- Bowl-shaped alumina grinding wheel: sharpen HSS circular knives
- Bowl-shaped diamond grinding wheel: sharpen tungsten steel circular knives
- Parallel diamond grinding wheel: sharpen tungsten steel circular knives
- Parallel diamond grinding wheel: sharpen bottom knife edges
- Parallel alumina grinding wheel: sharpen large edges of circular knives
- Parallel alumina grinding wheel: sharpen outer circles of slitter blades
3. Technical Parameters
- Workpiece grinding diameter: 50–350 mm (customizable up to 400 mm)
- Circular knife grinding angle: 0–180° (cutter head rotatable 360°)
- Worktable longitudinal travel: 200 mm
- Worktable cross travel: 300 mm
- Grinding head motor power: 380V, 50Hz, 1.5kW
- Grinding head speed: 3000 rpm
- Cutter head spindle taper: Morse No.4
- Cutter head spindle speed: 169 rpm
- Feed motor power: 380V, 50Hz, 120W
- Spindle gear motor power: 380V, 50Hz, 200W
- Water pump motor power: 380V, 50Hz, 125W
- Working lamp: 24V
- Grinding wheel dimensions:
Parallel wheel: OD 200 mm, bore 32 mm
Bowl-shaped wheel: OD 125 mm, bore 32 mm - Machine weight: 450 kg
- Overall dimensions (L×W×H): 1.15 m × 1 m × 1.3 m
4. High-Precision Spindle Grinding Head Motor
Features & Advantages
High efficiency, high power factor, high torque, low noise, low vibration, low temperature rise, strong overload capacity. Small radial runout at shaft end; dustproof and waterproof.
Technical Parameters
- Insulation class: F; Protection class: IP54
- Voltage: 380V/220V; Frequency: 50Hz; Power: 1.5kW
Rated current: 3.75/6.46A; Speed: 3000 r/min - Motor uses back-to-back angular contact ball bearings
- Spindle runout accuracy: 0–5 μm
5. Machine Accuracy
| No. | Item | Parameter |
| 1 | Cutter head spindle runout accuracy | 0~0.005mm |
| 2 | Cumulative fitting accuracy of circular knife fixture & spindle | 0.005~0.015mm |
| 3 | Mechanical indexing accuracy of column base | 0.1° |
| 4 | Grinding head motor spindle runout accuracy | 0~0.005mm |
| 5 | Linear accuracy of grinding head movement (X-axis) | 0.005~0.01mm |
6. Main Configurations
| Component | Brand |
| Linear guideways | HTPM |
| Ball screw | HTPM |
| Control Electrical Appliances | Schneider |
| Control system | Delta (Taiwan) |
| Spindle bearing | NSK (Japan) |
7. Environmental Requirements
| Power supply | 380V±10V、50Hz |
| Ambient temperature | 0～40℃ |
| Ambient humidity | 35%～65% |
| Air supply | Clean and dry air, pressure 0.3 MPa |
| Vibration isolation | Isolate from vibration sources |
| Grounding | Independent and reliable grounding: Drive an iron rod deeper than 0.5 m into the concrete near the equipment, fix it with concrete, then connect to the grounding bar in the electric cabinet with a single‑core copper wire of diameter ≥2.5 mm. |
