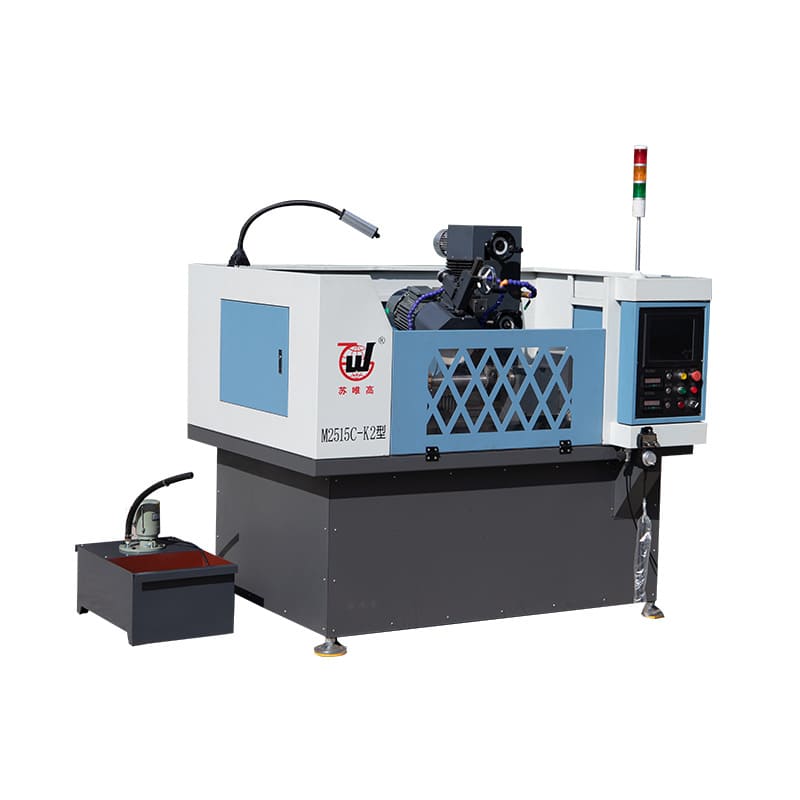

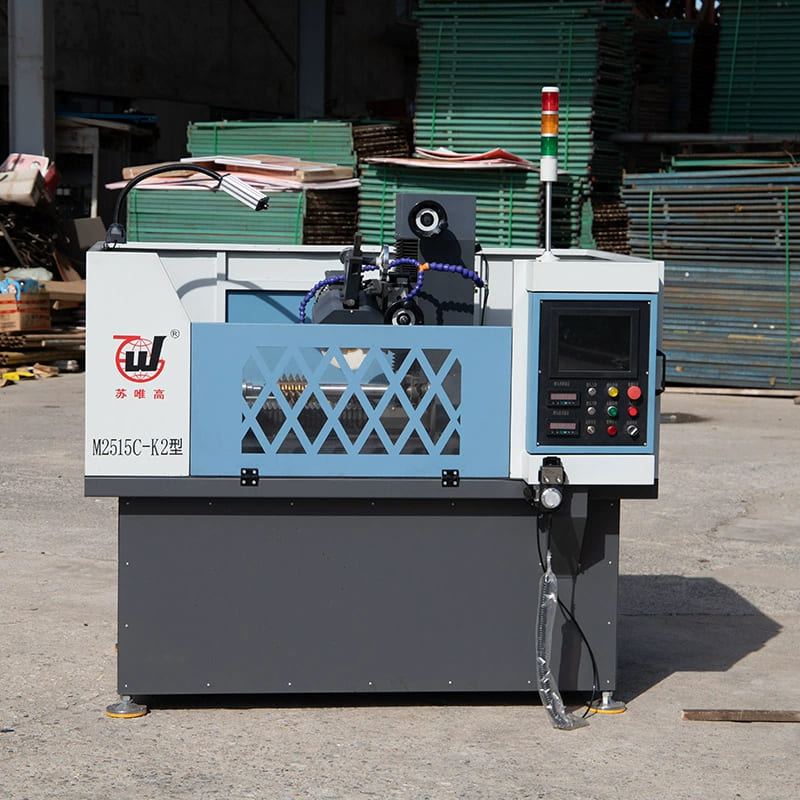

M2515C-K2 CNC Hob Grinding Machine

Guaranteed Safe Checkout

Product Introduction

Welcome to use the Model M2515C-K2 CNC Hob Grinding Machine manufactured by Nanjing Weigao. This machine is suitable for face relieving of indexing tools such as straight-fluted hobs and form cutters. This model adopts a self-developed 2-axis CNC system with a Chinese interface. The entire relieving process is controlled by servo motors, and relieving programs for different tools can be edited, stored, and recalled. The machine tool program adopts variable programming, allowing users to save and recall programs for different tools. Operators only need to input corresponding variables without additional programming, enabling fully automatic grinding cycles by entering working parameters. It is extremely simple and practical to operate, thus featuring both cost-effectiveness and high efficiency, and is especially favored by owners of small and medium-sized enterprises.

Description
Reviews (0)

Main Technical Specifications
Max. diameter of hob to be ground	250mm
Max. length of hob to be ground	200mm
Cross travel of grinding head	400mm
Longitudinal travel of grinding head	200mm
Height from worktable to spindle center	160mm
Max. distance between centers	600mm
Spindle speed of grinding head	3000 r/min
Max. peripheral speed of grinding wheel	45 m/s (for 150mm outer diameter grinding wheel)
Vertical travel of grinding wheel	150mm
Grinding head motor power	380V/50Hz / 1.5kW
Servo motors	X-axis: 1kW Y-axis: 1.8kW
Grinding wheel specifications	150×18×32 diamond grinding wheel 200×20×32 dish grinding wheel
Overall dimensions of machine	1800×1600×1600 mm (L×W×H)
Machine weight	1600kg

Machine Accuracy
Positioning accuracy of X/Y axes	0.01mm
Runout accuracy of centers	0.003~0.008mm
Spindle runout accuracy of grinding head	0~5 μm
Indexing positioning accuracy	±12″
Indexing repeatability accuracy	±5″
