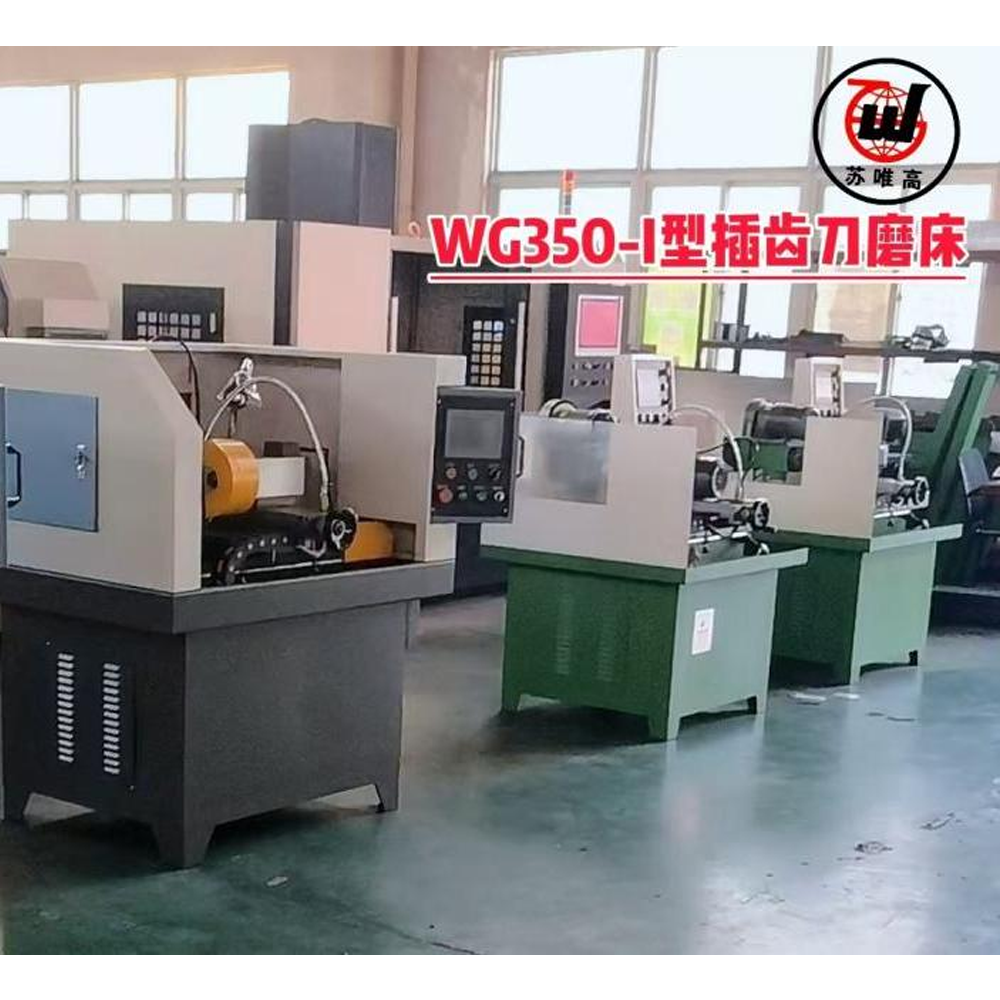

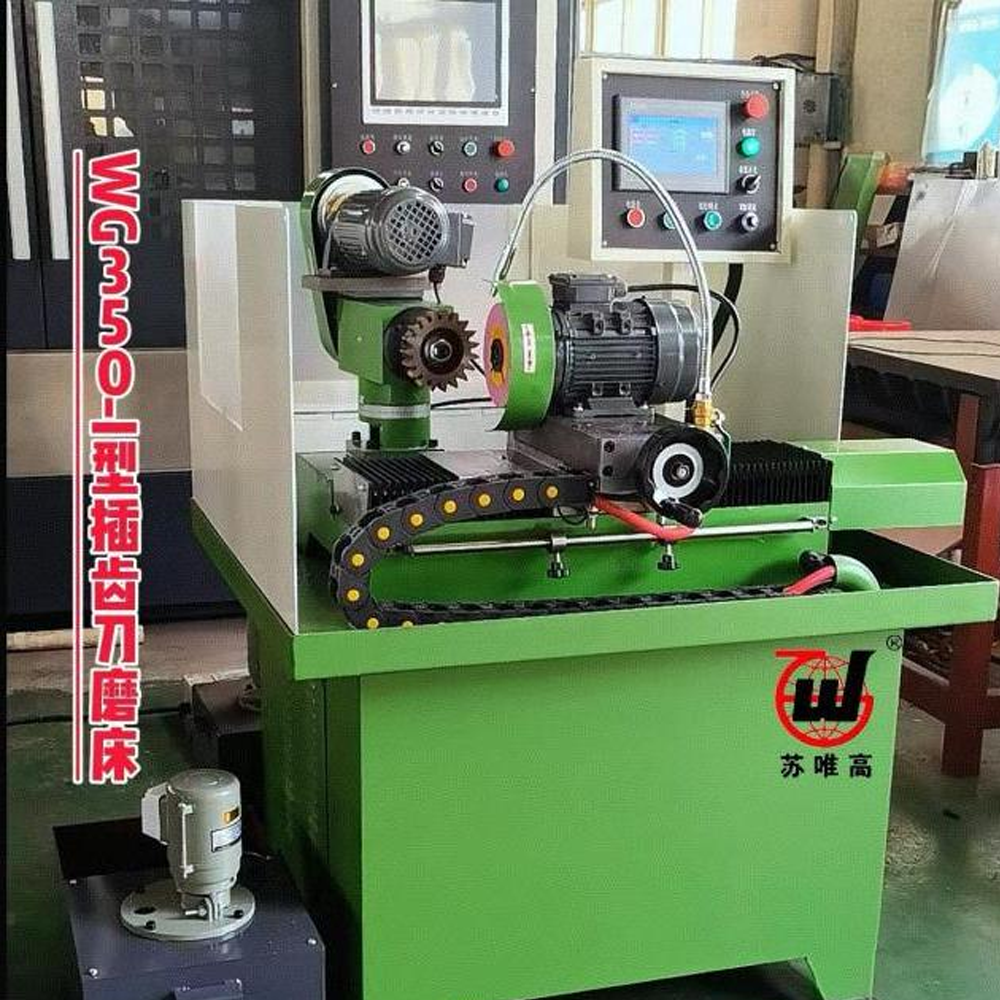

W350-I Type Gear Shaper Cutter Grinder

1. Product Description

Welcome to use the WG350-I type gear shaper cutter grinder manufactured by Nanjing Weigao. The bed and components of this equipment are made of nodular cast iron in accordance with processing technology. Precision linear guides and ball screws are adopted for transmission parts, ensuring the grinding accuracy and long-term stable mechanical accuracy of the machine tool. It is equipped with Delta (Taiwan) control system and Schneider electrical appliances, maintaining stable equipment operation for a long time.

This machine is a special machine tool for sharpening the front cutting edges of disc-type gear shaper cutters, bowl-type gear shaper cutters and taper shank gear shaper cutters. The roughness and runout accuracy of the sharpened gear shaper cutter edges can reach the AA-level standard accuracy.

Customization is available according to customer requirements.

Special Note: The product must be connected to three-phase four-wire 380V/50HZ + neutral wire and must be grounded.

2. Main Technical Specifications

Machinable workpiece diameter: 300mm
Longitudinal stroke of worktable: 160mm
Grinding head motor power: 380V, 50Hz, 0.75kW
Grinding head speed: 2800rpm
Headstock spindle taper hole: Morse No.4
Cutter head spindle speed: 160rpm
Feed motor power: 380V, 50Hz, 0.12kW
Spindle reduction motor power: 380V, 50Hz, 0.2kW
Grinding wheel size: Outer diameter 200 × Thickness 20 × Inner diameter 32
Machine weight: 350kg
Overall dimensions of machine: 1m × 0.9m × 1.4m (L × W × H)

3. Main Configurations

Component	Brand
Linear guideways	HTPM
Control Electrical Appliances	Schneider
PLC System	Delta (Taiwan)
Spindle Bearing	NSK (Japan)

4. Machine Tool Accuracy

No.	Item	Parameter
1	Morse No.4 spindle runout accuracy	0~0.005mm
2	Cumulative accuracy of spindle and gear shaper cutter fixture fit	0~0.01mm
3	Grinding head spindle runout accuracy	0.01~0.02mm

5. Grinding Accuracy

No.	Item	Parameter
1	Cutter finish	Within Ra0.3
2	Gear shaper cutter face runout accuracy	0.01~0.015mm

6. Environmental Requirements

Power supply	380V±10V、50Hz
Ambient temperature	0～40℃
Ambient humidity	35%～65%
Air supply	Clean and dry air, pressure 0.3 MPa
Vibration isolation	Isolate from vibration sources
Grounding	Independent and reliable grounding: Drive an iron rod deeper than 0.5 m into the concrete near the equipment, fix it with concrete, then connect to the grounding bar in the electric cabinet with a single‑core copper wire of diameter ≥2.5 mm.
